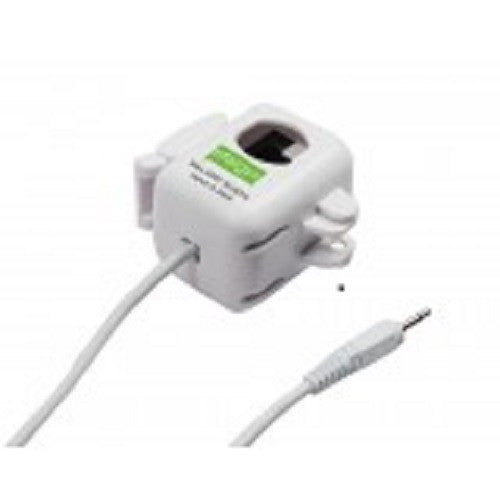

Efergy True Power Meter (TPM) XL 200 Jackplug extra sensor
Ef012 additional sensor for measuring current up to 200 amperes. Works with the elite or e2. Perfect for whole house applications where a 200 ampere service is installed. Split core design easily fits around wire sizes up to #4/0 AWG without breaking connections. An additional sensor is be required if measuring 3 phase power. The extra large sensor should be purchased for use on cables that are over 12mm in diameter, and up to 19mm in diameter.
Regulatory approvals and ratings are screen printed on each sensor. 50 ma to 200 amperes 600 volts Canada/US ETL approved to UL and CSA standards.
How it works
All transmitters come with three spaces for sensors. Just look on the underside of the transmitter, take out the rubber cover of one of the spare spaces and plug in your additional sensor. Then attach it the same way as the previous one.
If you are purchasing a sensor for a monitor that you already own, PLEASE check the connection type between the sensor and transmitter before ordering, to ensure you receive the correct product. If you are purchasing extra sensors for a new monitor that you are purchasing, please order the additional sensors on our website.
If you have an older monitor you may require the old 'DC' style fitment of sensor.
